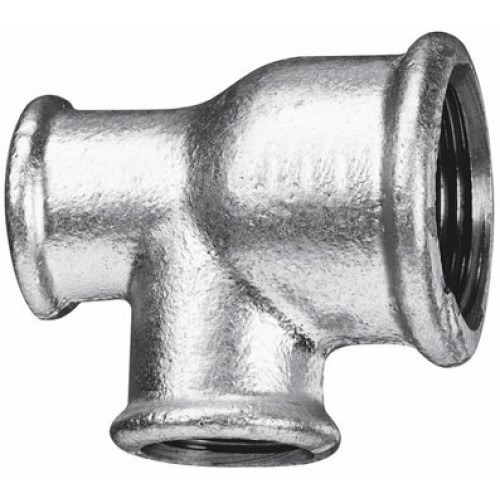

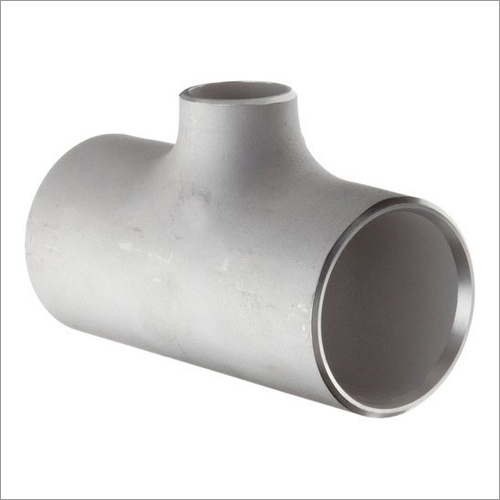

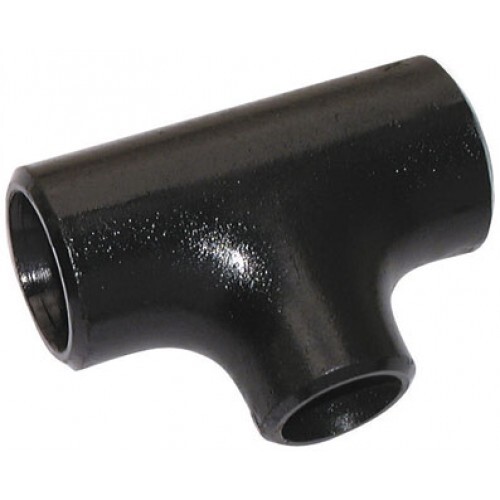

Un Equal Tee
Product Code : sp-070
Brand Name : SUPREMO POLYMER
Product Description
Un Equal Tee
Bill of Material
| Size | AS PER DATA SHEET |
| Flange / Hub | ASTM A 105 / ASTM A 395 (DI) / ASTM A 216 (WCB) |
| Pipe | ASTM A 106 Gr. B SCH-40 |
| Lining | PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTATIC PFA, HDPE AS PER STD |
Testing Parameters as Per ASTM F 1545
| Hydro Test | AT 29.0 KG/CM2 AFTER LINING |
| Spark Test | AT 15 KV DC AFTER HYDRO TEST |
| Lining Thickness | AS PER ASTM F 1545 |
| Dimensions and Visual Check | 100% |
NOTE:- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
UN EQUAL TEE DATA SHEET
| SIZE 1 (NB) | SIZE 2 (NB) | F ±3.0 |
| 25 | 15 | 89 |
| 40 | 25 | 102 |
| 50 | 25 | 115 |
| 50 | 40 | 115 |
| 65 | 50 | 127 |
| 65 | 40 | 127 |
| 80 | 25 | 140 |
| 80 | 40 | 140 |
| 80 | 50 | 140 |
| 80 | 65 | 140 |
| 100 | 25 | 165 |
| 100 | 40 | 165 |
| 100 | 50 | 165 |
| 100 | 80 | 165 |
| 150 | 40 | 203 |
| 150 | 50 | 203 |
| 150 | 80 | 203 |
| 150 | 100 | 203 |
| 200 | 50 | 228 |
| 200 | 80 | 228 |
| 200 | 100 | 228 |
| 200 | 150 | 228 |
| 250 | 80 | 279 |
| 250 | 100 | 279 |
| 250 | 150 | 279 |
| 250 | 200 | 279 |
Dimension Specification
All Dimension are in mm
Flange Dimension As Per ANSI B. 16.5 and ASA 150#
